CephaloMetrics AtoZ ver.14 New featuresAtoZ Ver.14

Model3D model

AtoZ supported STL data in Ver.14.
It can be displayed with 3D of the model. 3D model imported by AtoZ can perform measurement of distance and angle, the show of overjet/overbite.

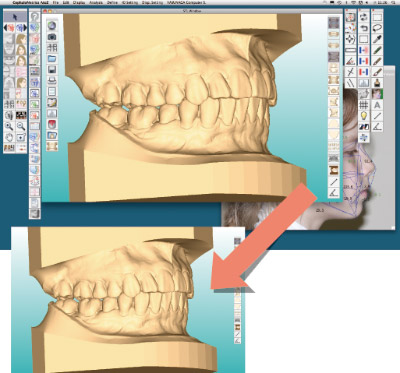

Change to a full screen when double-click a screen.


Model Model Model

Model Model
Click an image to zoom in.

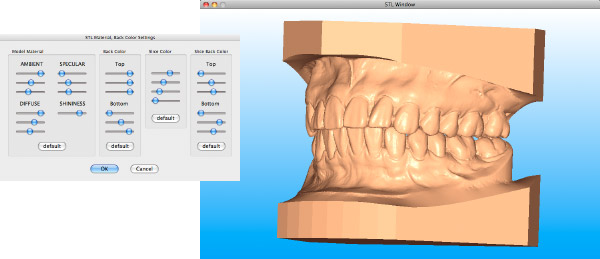

Change color

Change a color.
You can set a favorite color to a model.

Model

Click an image to zoom in.

Red YellowGreen Cyan Blue Purple





Slice

This tool can show Over jet / Over bite.

Slice



Mesh

Show model in mesh.

Mesh



Input frontal line with point mode

In the same way as a lateral line, you can input flontal line with point mode.

Input frontal line with point mode



About the format of the numerical value of trace

The display of the numerical value of trace can be chosen from Decimal or Integer.

Integer

Decimal



Printing of panorama X rays

The layout of printing of panorama Xrays was changed as follows.

panorama X rays

Length

Measure distance.

Length





Angle

Measure angle.

 Angle

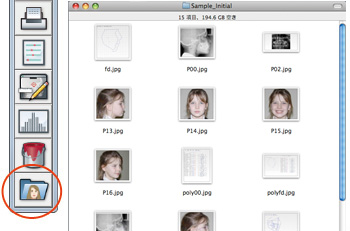

JPEG image output

You can output JPEG images without saving AtoZ data. The folder of a preservation place can be specified beforehand by Jpeg Setting.
Select the "JPEG image save"tool and click the OK. JPEG images are output.

JPEG image output



Show only trace by Lateral(Color).

Show only trace also by Lateral(Color).
You click Lateral(Color) and show only trace.

Show only trace by Lateral(Color)



view layout

The following formats were added to the view layout.

View format

View format
